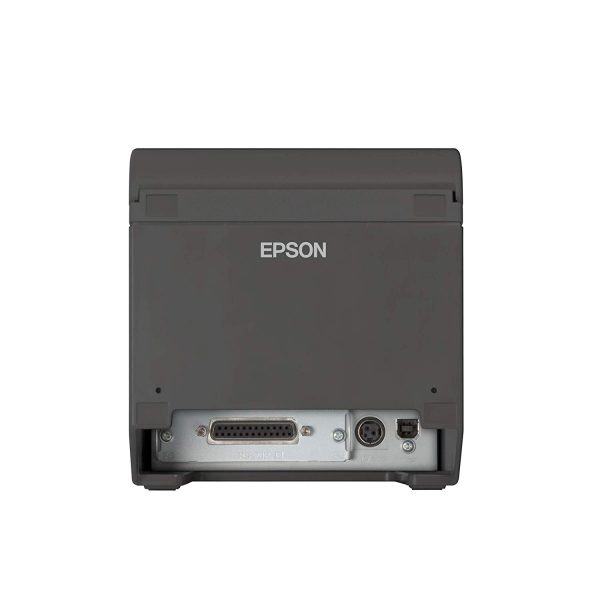

Epson TM-T82II Thermal POS Receipt Printer
| MODEL NAME | TM-T82II | |
| PRINT METHOD | Thermal line printing | |
| PRINT FONT | Font A: 12 × 24 / Font B: 9 × 17 | |
| COLUMN CAPACITY (columns) | Standard: Paper width 80mm: 48/64; Paper width 58mm: 35/46 42 Column Mode: Paper width 80mm: 42/60; Paper width 58mm: 42/31 |
|
| CHARACTER SIZE (mm) | Font A: 1.25 (W) ×3 (H), Font B: 0.88 (W) ×2.13 (H) | |
| CHARACTER SET | 95 Alphanumeric, 18sets International, 128 × 43 Extended Graphics Bar code : UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN), CODE39, ITF, CODABAR(NW-7), CODE93, CODE128, GS1-128, GS1 DataBar Two-dimensional code : PDF417, QRCode, MaxiCode, Two-dimensional GS1 DataBar, Composite Symbology |
|
| CHARACTERS PER INCH | Font A: 16.9 cpi, Font B: 22.6 cpi | |
| INTERFACES | USB + Serial, USB + Parallel, Ethernet | |
| RECEIVE DATA BUFFER | 4 KB or 45 bytes | |
| PRINT SPEED | Max. 200 mm/sec | |
| RESOLUTION | 203 dpi × 203 dpi | |
| PAPER DIMENSIONS (mm) | 79.5 ± 0.5 (W) × dia. 83.0, 57.5 ± 0.5 (W) × dia. 83.0 | |
| POWER | 24 VDC ± 7% | |
| POWER CONSUMPTION | Operating: Approx. 1.8 A (Mean / Print ratio 18% with print pattern) Standby: Approx. 0.1 A (Mean) |
|
| POWER SUPPLY | External power supply (AC Adapter C1) | |
| PRINTER MECHANISM LIFE | 15 million lines (printing + paper feeding) | |
| AUTO CUTTER LIFE | 1.5 million cuts | |
| MTBF | 360,000 hours | |
| MCBF | 60,000,000 lines | |
| EMI AND SAFETY STANDARDS | Oceania EMI AS/NZS CSPR22 Class A | |
| STANDARD ACCESSORIES | Roll paper × 1 roll (for checking the initial movement of the printer), CD-ROM (Drivers, Utility software, Manuals), Setup guide, Power button cover, Waterproof power button cover, Wall hanging bracket, Screws for wall hanging bracket, Rubber feet for vertical installation, Control panel sheet for vertical installation, 58-mm width paper guide, External power supply (AC Adapter C1), AC cable (May not be included depending on the printer model) | |
