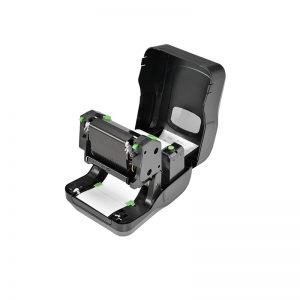

Zenpert 4T520 TVS Barcode Label Printer
- Smooth printing experience
- Large supplies capacity ‒ 300 meters (984’) ribbon supply or 110 meters (361’) ribbon supply on a 12.7 mm (0.5”) core
- High-class thermal printing head ‒ clear print quality and enhance durability
- Optimized heat radiation design ‒ durable for large volume printing
| Characteristic | Value |
| Model | 4T530 |
| Resolution | 300 dpi |
| Printing method | Thermal transfer printing / direct thermal printing |
| Maximum print speed | 102 mm (4”)/second |
| Ink used | Ribbon 300 meters, ink side outside |
| Max print label width | 105.6 mm (4.16”) |
| Maximum label length | 11.430 mm (450”) |
| Physical size | 211 mm (W) x 166 mm (H) x 279 mm (D)
8.31” (W) x 6.46” (H) x 10.98” (D) |
| CPU Processor | 32-bit RISC CPU |
| Memory | 16MB Flash memory, 64MB SDRAM |
| System connection port | USB 2.0 |
| Barcode | • 1D barcode: Code 128UCC, Code 128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Code 39, Code 39 with check digit, Code 93, EAN13, EAN8, UPCA, UPCE , EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, Code 11, TELEPEN, TELEPENN, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
• 2D barcode: GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417 |
| Printing paper label thickness | 0.06 ~0.19mm |
| Weight | 2.4 kg (5.29 lbs) |
| Power required | External universal switching power supply
• Input: AC 100-240V, 2.5A, 50-60Hz • Output: DC 24V, 2.0A, 48W |
| User preferences | • Quick start guide
• USB cable • Power cord • External universal switching power supply • Label spindle x 1, fixing tab x 2 • 1” ribbon spindle x 2” • 0.5” ribbon spindle x 2 |
