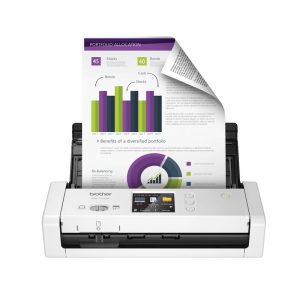

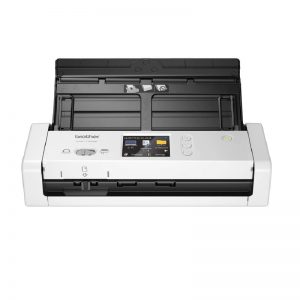

Brother ADS-1700W Wireless Document Scanner
Description
- Optical Resolution: 600 x 600 dpi
- Scan Speed: 25 ppm / 50 ipm
- Maximum Scan Size: 8.5 x 34″
- Color Depth: 24-Bit
- 20-Sheet Single-Pass Duplexing ADF
- Dedicated Plastic Card Scanning Slot
- Daily Duty Cycle: 1000 Sheets
- 2.8″ Color Touchscreen, AC or USB Power
- USB 3.0 Wi-Fi Connectivity
- Included File Management OCR Software
Designed for efficiency and intuitive use, the Brother ADS-1700W is a wireless document scanner featuring a 2.8″ color touchscreen for simple one-touch scanning as well as the ability to configure preset destinations and settings management. Contributing to its portability, the ADS-1700W offers both AC and USB power options along with the ability to save documents via wired USB connection or over Wi-Fi. The scanner has an optical resolution of 600 x 600 dpi, a maximum interpolated resolution of 1200 x 1200 dpi, and 24-bit color depth along with a quick scanning rate of up to 25 ppm. An integrated 20-sheet ADF also has a single-pass design to easily accommodate both single- and double-sided documents, and a dedicated card slot is featured for scanning plastic cards. It is rated with a daily duty cycle of 1000 sheets for longevity and features a micro-USB 3.0 connection. Additionally, the included software bundle comprises applications for image enhancement, OCR, document organization, and a variety of drivers and scanning utility programs.
- AC Adapter
- Limited 1-Year Warranty
Brother ADS-1700W specs
| Maximum dpi Resolution | 1200 dpi |
| Optical Resolution | 600 dpi |
| Duplex Speed | 50 ipm (Color, Grayscale) |
| Simplex Speed | 25 ppm (Color) 25 ppm (Grayscale) |
| Maximum Document Width | 8.5″ / 21.6 cm |
| Maximum Document Length | 34″ / 86.4 cm |
| Color Depth | 48-Bit (Internal) 24-Bit (External) |
| Grayscale Bit-Depth | 8-Bit (External) |
| Duplex Scanning | Yes |
| Single Pass Duplex | Yes |
| Scan Modes | Color, Grayscale, Monochrome |
| Document Feeding | ADF |
| Life Expectancy | 1000 Sheets per Day |
| Connectivity | USB 3.0 |
| Wireless Connectivity | Wi-Fi |
| Wi-Fi Standards | 802.11b/g |
| File Formats | BMP, JPEG, Multi-Page PDF, Multi-Page TIFF, PDF, PNG, TIFF |
| Media Types | Plain Paper, Plastic ID Card |
| Image Sensor | 2 x Contact Image Sensor (CIS) |
| Control Panel | LCD Touchscreen |
| Drivers | TWAIN, WIA, ICA, SANE |
| Duty Cycle | 1000 Scans |
| Maximum Sheet Capacity | 20 |
| Automatic Image Corrections | Yes |
| Environmental Compliance | ENERGY STAR |
| AC Input Power | 110 VAC, 60 Hz |
| Power Source | AC Adapter |
| Dimensions | 11.8 x 4.1 x 3.3″ / 299.7 x 104.1 x 83.8 mm |
| Weight | 3.7 lb / 1678 g |
| Packaging Info | |
|---|---|
| Package Weight | 4.35 lb |
| Box Dimensions (LxWxH) | 15.0 x 8.0 x 6.0″ |
