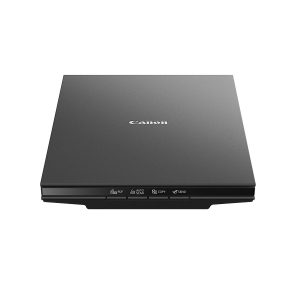

Canon CanoScan LiDE 300 Flatbed Scanner
- Optical resolution represents the maximum sampling rate based on ISO 14473.
- The 48-bit output is supported only when using the TWAIN driver for Windows.
- The scanner is designed to produce optimal results when connected to a USB 3.0 or higher port with the supplied USB cable. Connect the USB cable supplied with the scanner to a USB 3.0 or higher port. (The supplied USB cable is for the scanner only.) It cannot be used for other devices.
- To use Hi-Speed USB, computer must support Hi-Speed USB. Additionally, the Hi-Speed USB interface is completely backward compatible with USB 1.1, so the connection is possible even if the computer interface is USB 1.1.
- The USB connection to PC.
Specification:
| Scanner type | Flatbed |
|---|---|
| Sensor type | CIS |
| Light source | 3-color (RGB) LED |
| Optical resolution *1 | 2400 x 2400 dpi |
| Selectable resolution | 25 – 19200 dpi (ScanGear) |
| Scanning bit depth | Color: 48 bit input (16 bit input for each color (RGB))/ Windows: 48 bit or 24 bit output (16 bit or 8 bit output for each color (RGB)) *2 Mac: 24 bit output (8 bit output for each color (RGB))Grayscale: 16 bit input or 8 bit output |
| Interface | USB2.0 High-Speed Mini-B *3 *4 |
| Maximum document size | A4/Letter (8.5″ x 11.7″/216 x 297 mm) |
| Scanner buttons | 4 buttons (PDF, AUTO SCAN, COPY, SEND) |
| Operating environment | Temperature: 41 to 95 °F (5 to 35 °C)
Humidity: 10 – 90 % RH (no condensation) |
| Power supply | Supplied via USB port (No external adapter required) |
| Power consumption | In operation (max.): Approx. 4.5 W
Stand-by: Approx. 0.3 W *5 |
| External dimensions | Approx. 9.9 (W) x 14.5 (D) x 1.7 (H) inches (250 x 367 x 42 mm) |
| Weight | Approx. 3.6 lbs (1.7 kg) |
